List of detailed stresses over circumference due to lateral loadings on the cross-sectional ring (Output Table)

Data description/Result options:

ANGLE:

Location at circumference where calculations have been performed

(measured in positive sense around x-axis from y-axis)

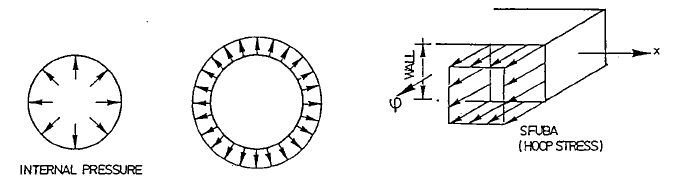

SFUBA:

Circumferential normal stress over wall thickness, stress component resulting from internal overpressure (all Fourier harmonics)

(SFUBA is calculated with the average diameter (D-T) and the nominal wall thickness minus the corrosion allowance (T))

RSTRESS_SFUBA

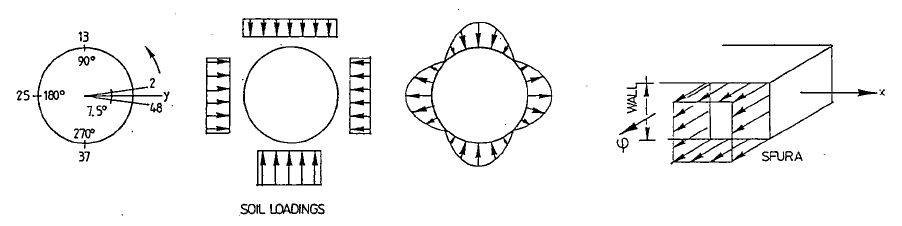

SFURA:

Circumferential normal stress over wall thickness, stress component resulting from circumferential soil loadings (all Fourier harmonics)

RSTRESS_SFURA

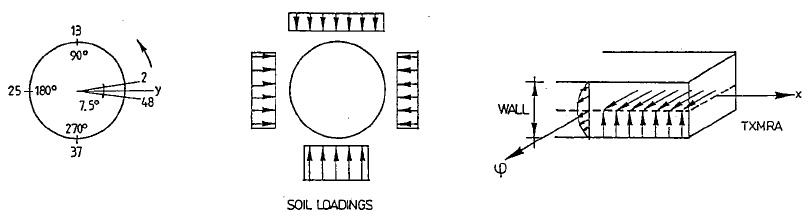

TXMRA:

Radial/circumferential shear stress at mid-wall location, stress component from circumferential soil loadings (all Fourier harmonics)

RSTRESS_TXMRA

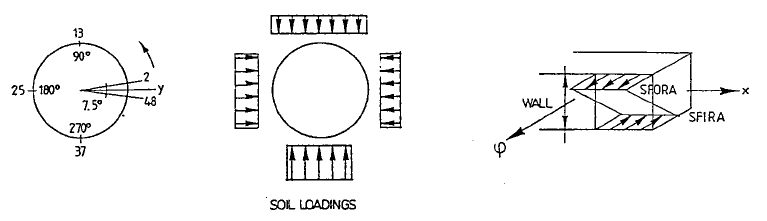

SFIRA:

Circumferential normal stress at inner wall location, stress component from circumferential soil loadings (all Fourier harmonics)

RSTRESS_SFIRA

SFORA:

Circumferential normal stress at outer wall location, stress component from circumferential soil loadings (all Fourier harmonics)

RSTRESS_SFIRA

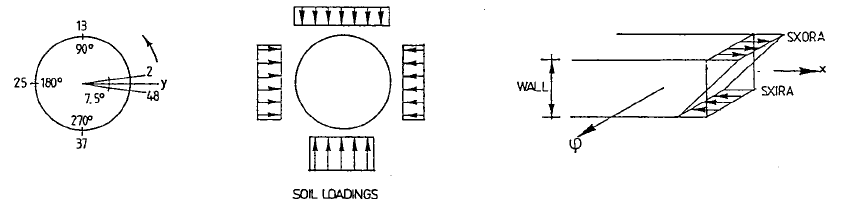

SXIRA:

Longitudinal normal stress at inner wall location, Poisson stress component from sfira

RSTRESS_SXIRA

SXORA:

Longitudinal normal stress at outer wall location, Poisson stress component from sfora

RSTRESS_SXIRA



Info The number of rows is 48 (each 7.5°).
