Mitre bends configuration data (Output Table)

Data description/Result options:

IDENT:

Name of polygon point (n) specified in table ORIGIN or POLYDIF

GEOMRAD:

Geometric bend radius

(This is either the bend radius entered in table POLYDIF or the calculated bend radius from N-KINK and L-SEGM.)

N-KINK:

Number of mitre bend kinks

L-SEGM:

Mitre bend segment length

(This is either the value entered in table POLYDIF or the calculated value from BENDRAD and N-KINK.)

K-ANGLE:

Kink angle

(The kink angle equals to 2α.)

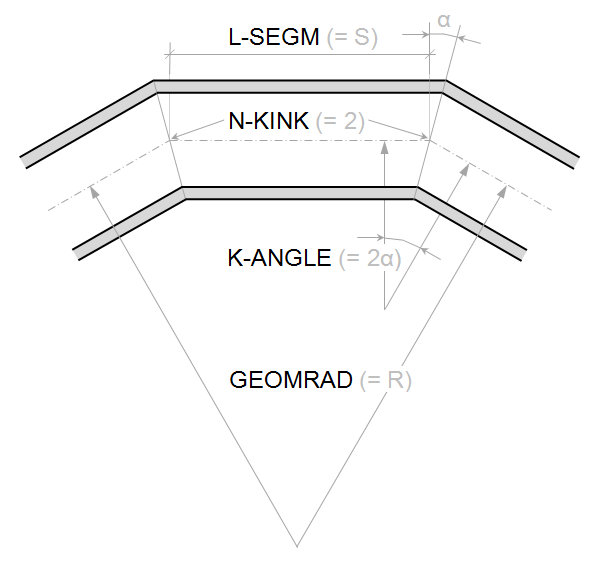

Example of a two kink mitre bend

Example of a two kink mitre bend
